微波是指頻率在300兆赫茲到300千兆赫茲的電磁波。被加熱介質物料中的水分子是極性分子。它在快速變化的高頻電磁場作用下，其極性取向將隨著外電場的變化而變化，造成分子的運動和相互摩擦效應。此時微波場的場能轉化為介質內的熱能，使物料溫度升高，產生熱化和膨化等一系列物化過程而達到微波加熱干燥的目的。

微波干燥機的特點:

微波干燥是一種高效、節能、穩定、可靠、設備簡單、操作方便和新技術。微波干燥機的特點是設備連續生產，只需要用電，不需要其它能源，能快速的將物料干燥，設備占地小，無污染，操作簡單；不需要預熱也沒有在停機后還有能源損耗。人工少，產品質量高。設備先進化程度高，是別的設備無法替代的高新技術產品。

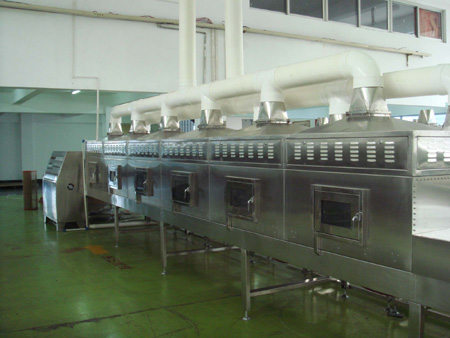

Microwave dryer

The purpose of microwave dryer is:

Mainly used for paste food, powder food, granular food, agricultural products, and other products that need to be dried by microwave drying sterilization; microwave dryer can be designed and manufactured according to the different needs of different products.


Heating principle of microwave dryer


Microwave refers to electromagnetic waves with frequencies ranging from 300 MHz to 300000 trillion Hz. The water molecules in the heated medium are polar molecules. Under the fast changing high frequency electromagnetic field, its polar orientation will change with the change of external electric field, resulting in the movement of molecules and mutual friction effect. At this time, the field energy of microwave field can be transformed into heat energy in the medium, which makes the material temperature rise, and produces a series of physical and chemical processes, such as heating and expansion, to achieve the purpose of microwave heating and drying.


Technical parameters of microwave dryer

Equipment type QX-30HM7

Input power three phase five wire 380V + 10% 50Hz + 1% (zero line must be as big as phase line).

Rated input power 45KVA

Microwave output power 30KW (power segment adjustable)

Microwave frequency 2450MHz + 50MHz

The dimensions of the equipment are long * width * 11630 x 1310 x 1668 (mm).

Transmission speed 0.5-5M/min

Ambient temperature 0-40 C, relative humidity less than 80%

7 cases of microwave heating box can be designed according to output.

Microwave feed mode top feeding can be designed according to process requirements.

50mm height of microwave suppressor

Electrical cooling mode magnetron water cooling, transformer oil immersion cooling cycle

The microwave leakage standard of equipment is in line with the national GB10436-89 standard (less than 5mw/cm2).

The electrical safety standards of the equipment comply with the national GB5226 electrical safety standards.

Transmission power specification: 1.5KW variable frequency speed regulation

Temperature range and accuracy: 0-350 C

Control mode button control

The output of equipment is dry and dehydrated per hour: 30KG



The characteristics of microwave dryer are as follows:

Microwave drying is an efficient, energy saving, stable, reliable, simple device, easy to operate and new technology. Microwave dryer is characterized by continuous production of equipment, only need electricity, no need for other energy, can quickly dry materials, equipment occupies a small area, pollution-free, simple operation; no need for preheating and no energy loss after shutdown. Less manpower and high product quality. The equipment is highly evolved. It is a new and high technology product which can not be replaced by other devices.

      東莞市齊協微波設備有限公司是專業從事研發、生產、銷售微波設備的高新技術企業，是當前國內技術實力雄厚的微波設備制造廠家。采用世界先進技術，按GMP、FDA標準，制造國內新一代品牌的2450MHz100多種型號規格的微波設備。為國內外的食品、化工、木材、制藥等多個行業提供技術先進、質量可靠的微波能應用設備，其各項主要技術指標均居于國際先進水平。

      東莞市齊協微波設備有限公司主要產品有：微波干燥、微波干燥機、微波干燥設備、微波殺菌設備、微波烘干設備、微波殺青設備、微波萃取設備、微波膨化設備、微波解凍設備、微波加熱設備、微波脫硫設備、微波硫化機、微波真空干燥機、木材微波烘干機等系列微波設備。

      我們承接各種應用實驗、中試放大生產及全方位技術服務，解決微波設備工藝應用難題。在產前按客戶的產品質量工藝要求，共同進行應用實驗的基礎上，進而做出周密設計，提供具體實施方案，達到共識后精工制造，并負責成套設備的安裝與調試，現場技術指導和人員實際操作、檢修的培訓。產品保修壹年和終身技術服務。

      ——歡迎廣大客戶前來考察、洽談。我公司誠摯希望與各界同仁攜手合作，共同發展！
